Product Details
＋

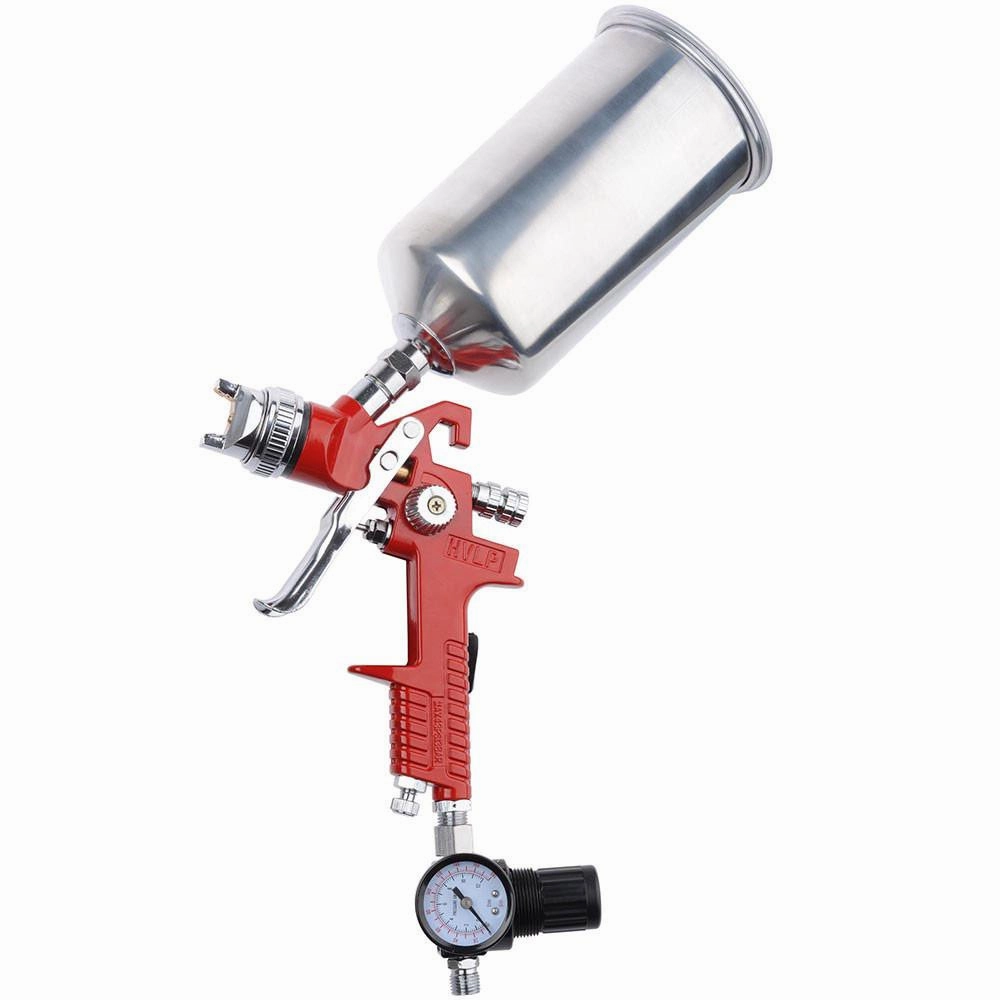

Here we are offering a Professional Gravity Feed Production HVLP(High Volume Low Pressure) Sprayer with 1.4mm Fluid Tip and Regulator. This sprayer supplies low pressure through the air cap which makes the spraying softer, easily controlled and less overspray in high transfer efficiency. Ideal for spraying basecoats, clearcoats and other light to medium viscosity coatings!
Features:
- Designed to provide equal atomization and partical size for all kinds of surface painting.
- Stainless steel needle and nozzle accommodate a variety of coatings.
- Light weight, ergonomic design and easy trigger pivot reduces operating fatigue.
- Precise 1.4mm stainless steel needle and nozzle set.
- 3 Knobs for full adjustment: Fluid, Pattern and Air Pressure Controls.

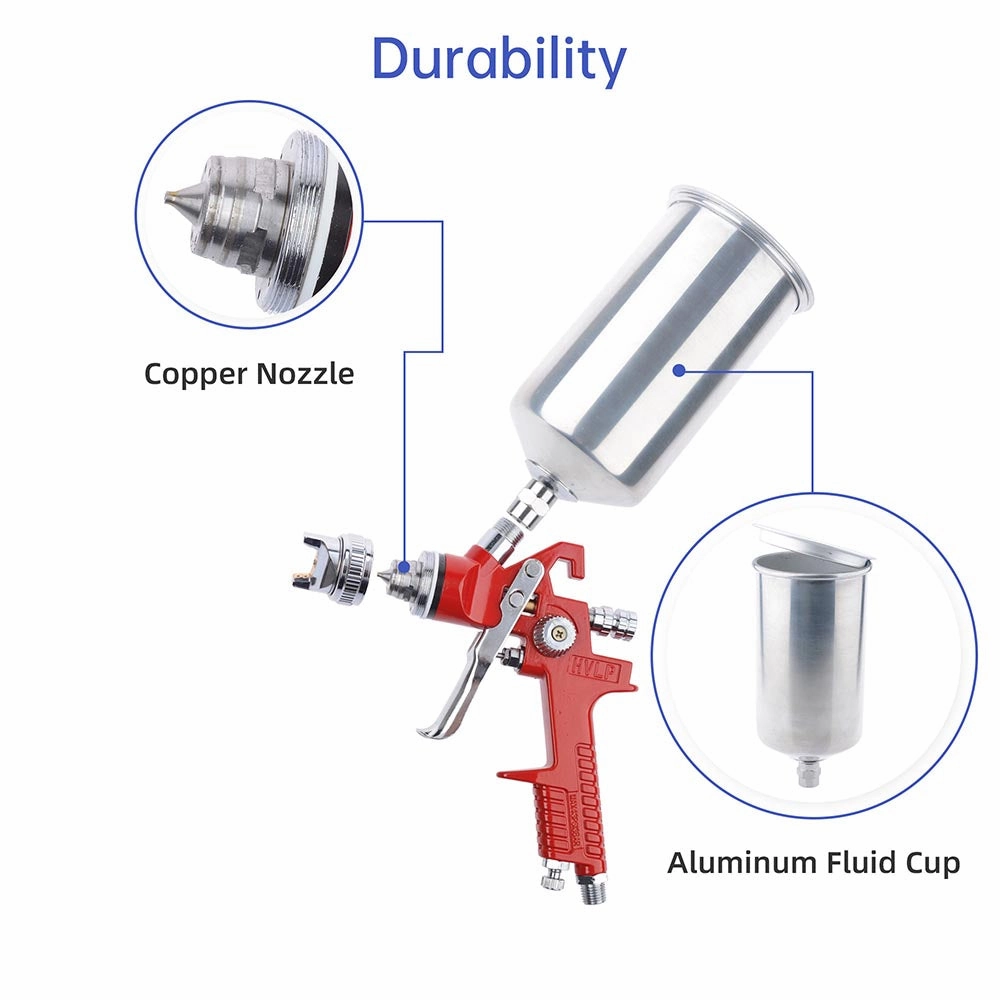

- 1000 ML Stainless Steel Fluid Cup with Lid.

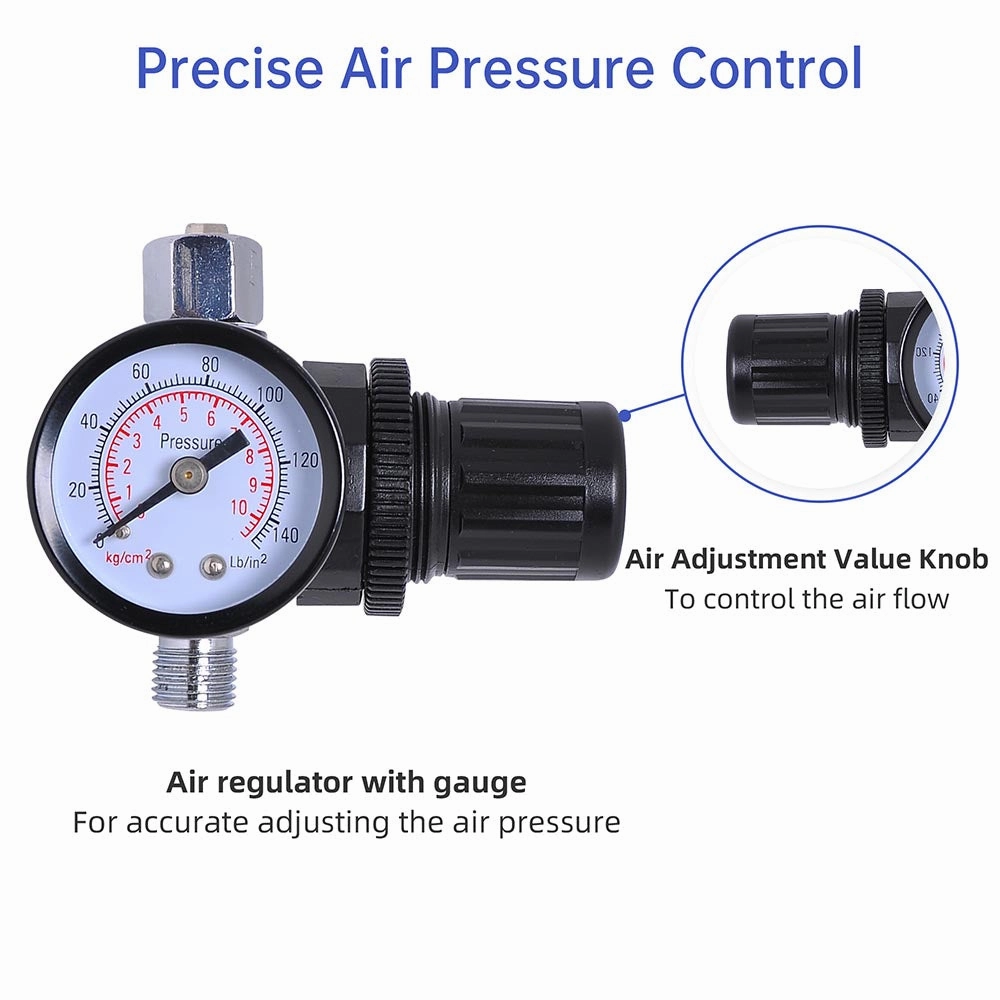

- Comes with a True Micrometer Air Regulator with Gauge as free gift.
Specifications:
| Overall Dimension(LxWxH) | 14 3/16" x 5 1/2" x 3 15/16" (36 x 14 x 10 cm) |
| Net Weight | 2.95 Lbs (1.34 kg) |
| Air Inlet | 1/4" |
| Type of Feed | Gravity |
| Diameter of Nozzle | 1.4mm |
| Recommended Air Pressure | 29-50.7 PSI (2.0-3.5 BAR) |
| Max. Pressure of Air | 90 PSI (6.2 BAR) |
| Paint Capacity | 1000 ML |
| Average Air Consumption | 4.2-7.1 CMF (117-199 L/MIN) |
| Pattern Width | 7.1" -9.84" |
| A-weighted Sound Pressure Level | 74.5 dB(A) |
| Sound Power Level | 85.5 dB(A) |

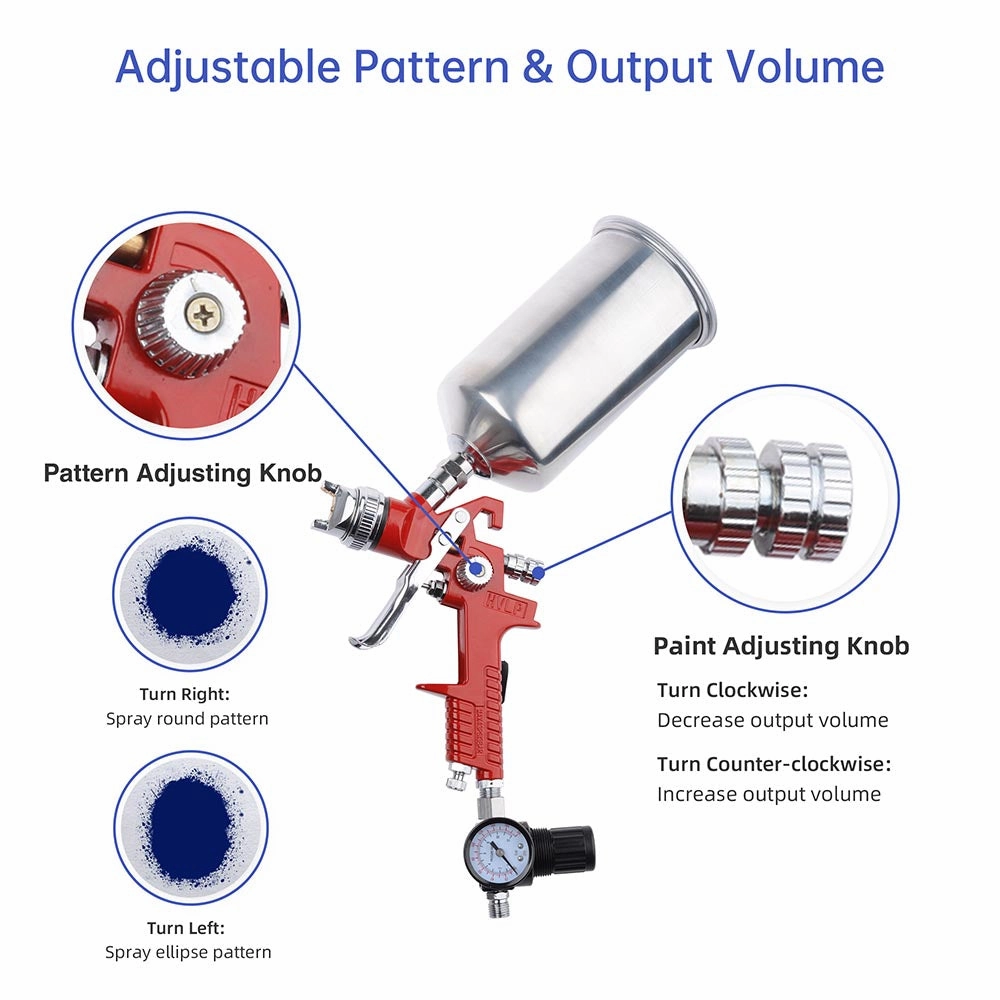

Fine Adjustment:
The desired pattern and fine atomization can be easily obtained by regulating the Pattern Adjusting Knob and Fluid Adjusting Knob.
- Pattern Adjustment: Turn the Pattern Adjusting Knob to the right until tight will make spray pattern round, or turn left make spray pattern ellipse.
- Fluid Adjustment: Turn the Fluid Adjusting Knob clockwise will decrease the volume of fluid output and counter-clockwise will increase fluid output.

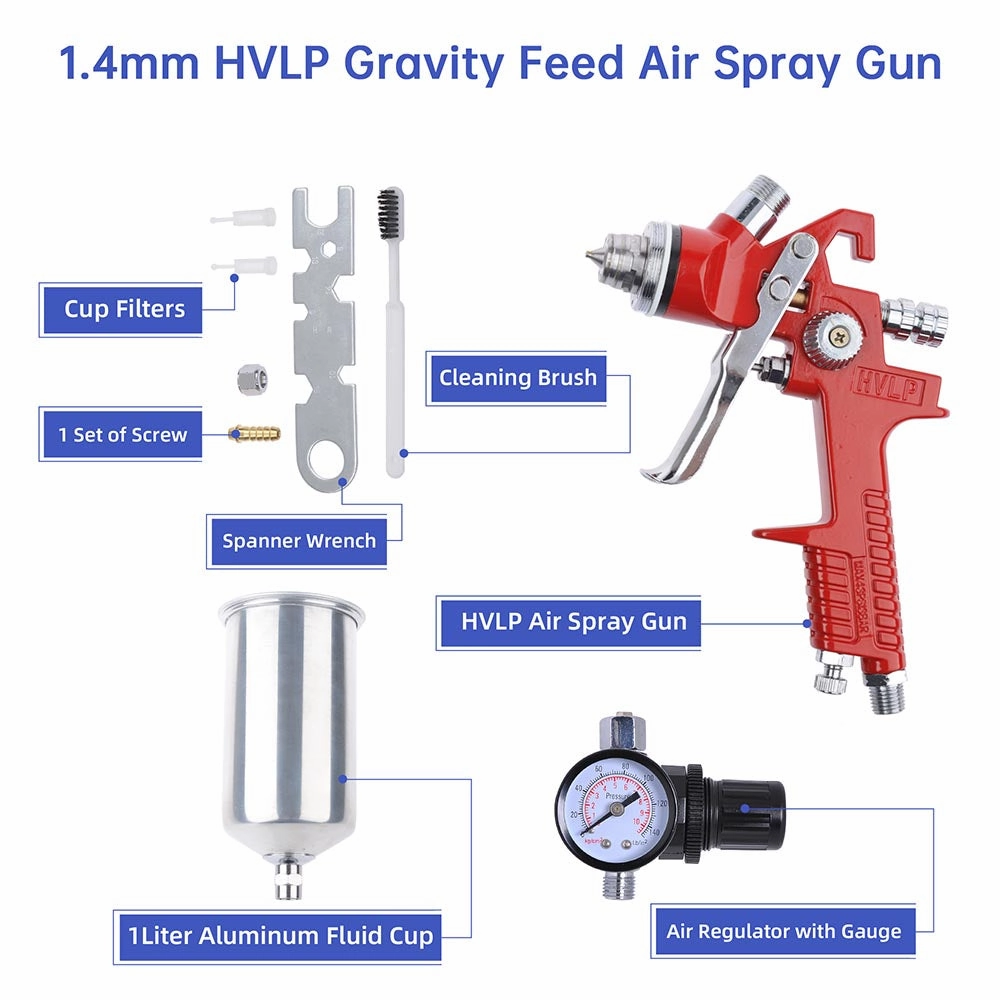

Package Includes:
- 1x HVLP Air Spray Gun
- 1x True Micrometer Air Regulator with Gauge
- 1x Spanner Wrench
- 1x Cleaning Brush
- 2x Cup Filters
- 1x Aluminum Fluid Cup with Lid
- 1 Set of Screw
- 1x Manual
